VNMG-331-EM nc-TiAIN COATED CARBIDE INSERT (6051-0331)

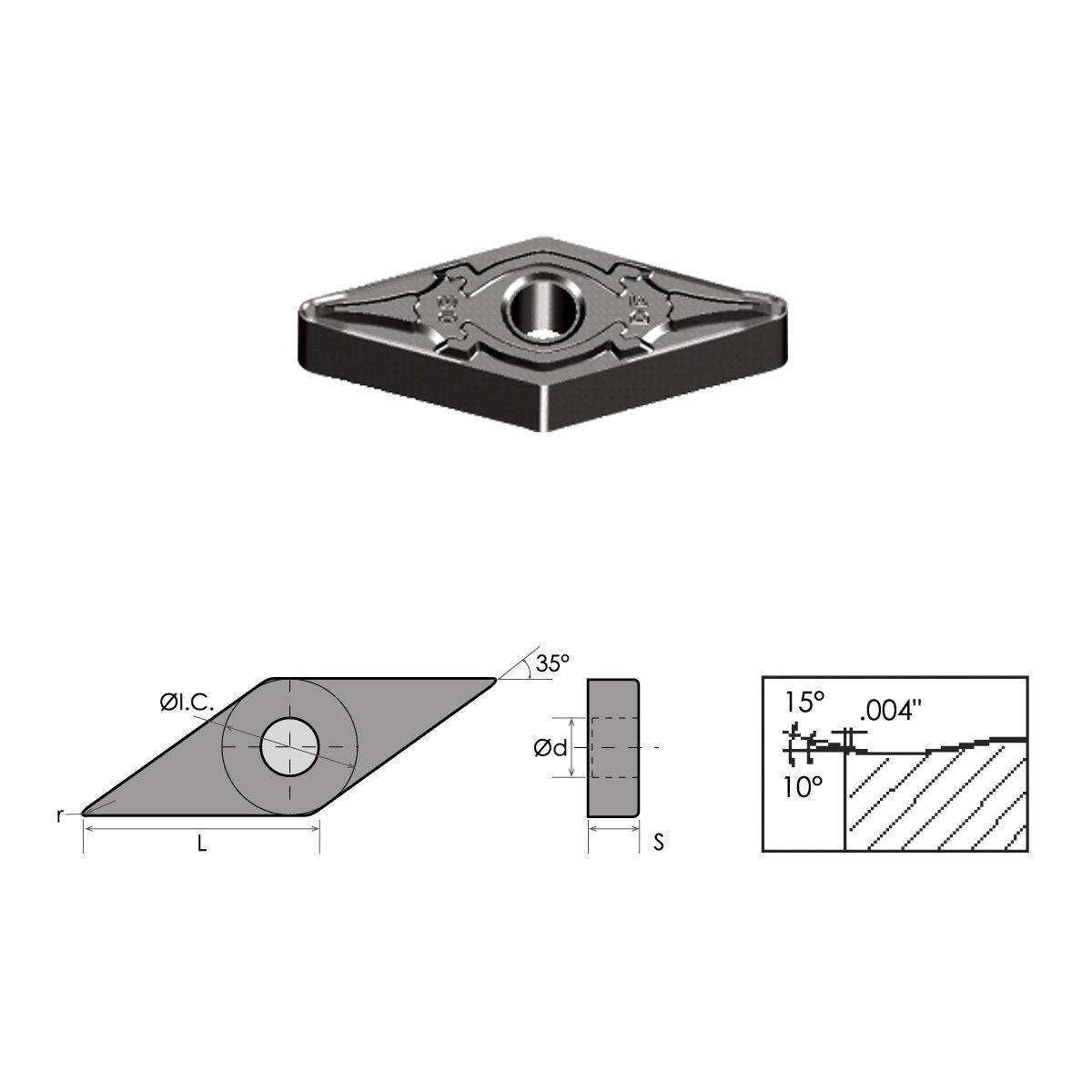

VNMG-331-EM nc-TiAIN Coated Carbide Insert I.C. is 5/8". L is 5/8". S is 3/16". d is 0.15". r is .0157". ISO insert number is VNMG160404EM. Semi-finishing geometry recommended for use with 300 Series stainless steels. For turning and milling carbon and alloy steels, tool steel and stainless steel. Provides a longer life than uncoated grades. Grade XAF795 works well in high heat situations and offers wear resistance on alloys, stainless steel and ductile iron. The nc-TiAIN coating, ultrafine grain substrate , and unique surface treatment make this grade suitable for high precision cutting of "difficult to machine" materials, such as stainless steel, etc. Double-side chipbreaker with M-class tolerance serves to reduce cutting force and workpiece adhesion when machining stainless steel. Possesses higher feed and depth of cut capability than EF chipbreaker. Shipping Weight: 0.02 lbs
