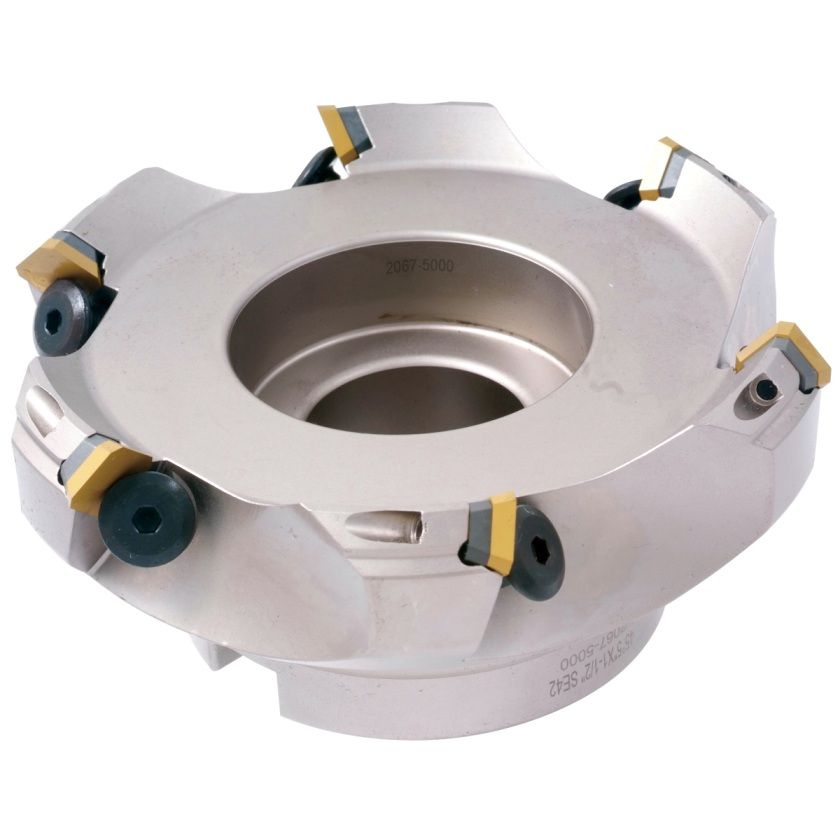

5" X 1-1/2 BORE 45 DEGREE SE42 INDEXABLE FACE MILL WITH 6 TEETH (2067-5000)

5" X 1-1/2 Bore 45 Degree SE42 Indexable Face Mill With 6 Teeth 45° lead angle allows an increase of feed rate by 50% over 90 degree face mill and also allows this face mill to used on smaller horse power mills. It accepts industry standard SEAN / SEKN / SEKR 42 insert which has a positive 20° clearance angle. It accepts industry standard SEAN / SEKN / SEKR 42 inserts which have a positive 20° clearance angle. The insert pockets are designed to be 19° positive inclined to minimize vibration and allow fast cutting while lowering cutting noise. Inserts are NOT included. Overall height is 2.48". D1 is 5.54". ap is 15/64". Shim size is SEAD42AD (#2100-4200). Replacement screw SM815.18L (#2100-0051). Shipping Weight: 7.4 lbs
