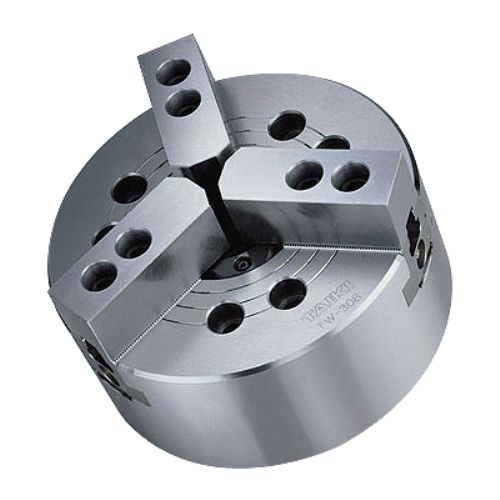

TAIKI 5" 3-JAW HOLLOW POWER LATHE CHUCK-A4 (3900-4585)

5" 3-Jaw Hollow CNC Power Lathe Chuck with A2-4 Mount Spindle Serrations pitch is 1.5mm X 60° Chuck Diameter is 135mm and Thru-Hole Diamater is 1.299". Plunger Stroke is 10mm. Jaw Stroke Diameter is 5.4mm. Maximum drawbar pull force is 1,750 kgf. Maximum gripping force is 3,600 kgf. Maximum Speed is 7,000 RPM. Maximum Hydraulic Pressure is 29 kgf/cm squared. Interchangeable with Kitagawa B200 Series Chucks. Approximately 20% higher speed, gripping force and larger bore when compared to conventional chucks. Made from high grade alloy steel. All sliding surfaces are hardened and ground for accurate actual running and long service repeatability. Chuck comes fitted with chuck adapter and includes mounting bolts, T-nuts and jaw mounting bolts. Taiki # TW-305A4 Shipping Weight: 17.65 lbs
