4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)

4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)

$285.48
$285.48
Skip to product information
4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)
  • 4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)
  • 4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)
4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)

4 X 1-1/2" BORE 90 DEGREE SQUARE NICKEL COATED INDEXABLE FACE MILL (2061-4004)

$285.48
$285.48

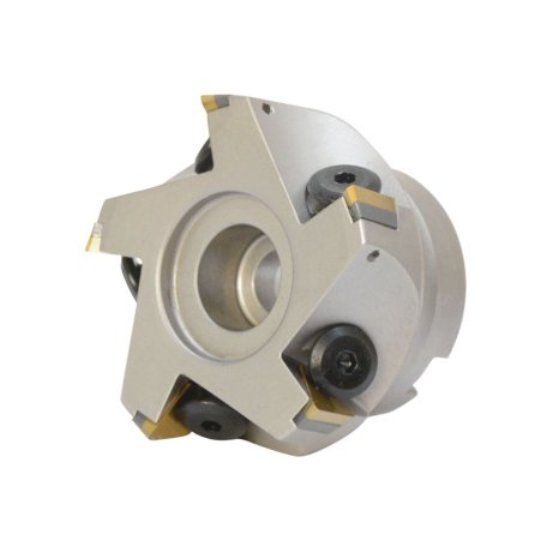

4 X 1-1/2" Bore 90 Degree Square Nickel Coated Indexable Face Mill Setting angle is 90 degrees. 11 degree positive triangular inserts allow for high depth of cut and feed per tooth. Radial rake angle is +1 degree. Axial rake is +7 degrees. The clamping system makes changing inserts quick and easy. Replacement shim is TP16D #2100-1100. Accepts TPG-432 carbide inserts. Replacement shim screw is M3 X 6.5-D5 #2100-0089. Shipping Weight: 4 lbs
