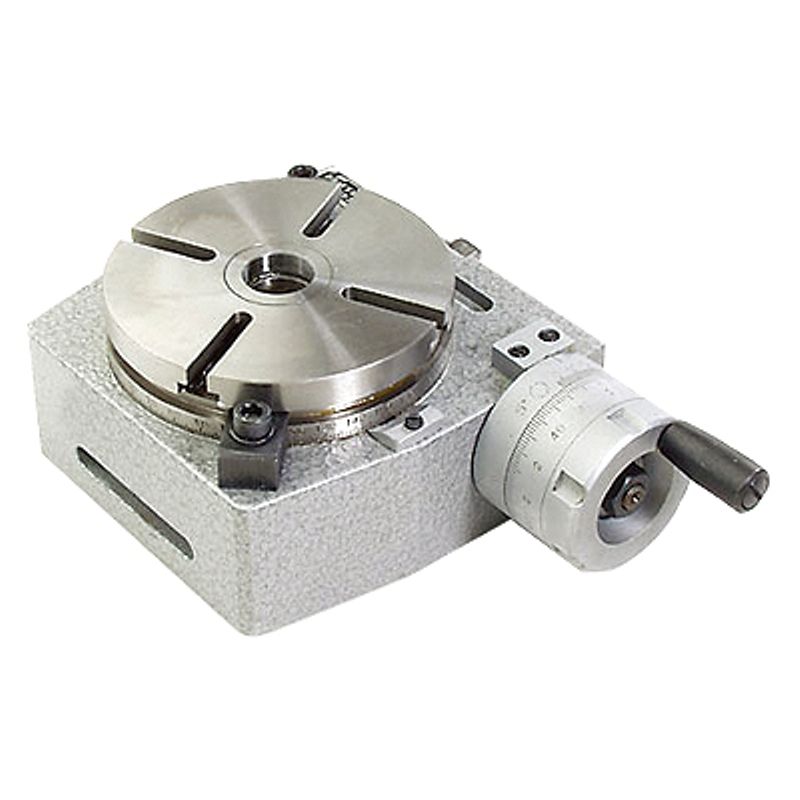

4" HORIZONTAL/VERTICAL ROTARY TABLE (3900-2304)

4" Horizontal/Vertical Rotary Table 10 second vernier reading. One rotation of handle equals 4° on the collar. Center height is 2.75". Gear ratio is 72:1. Center hole is 2MT. Number of t-slots is 4. Squareness is 0.0008". Base parallelism (face to face) is 0.0004". Taper center bore concentricity is 0.0008". Clamping surface flatness is 0.0006". Shipping Weight: 17 lbs
