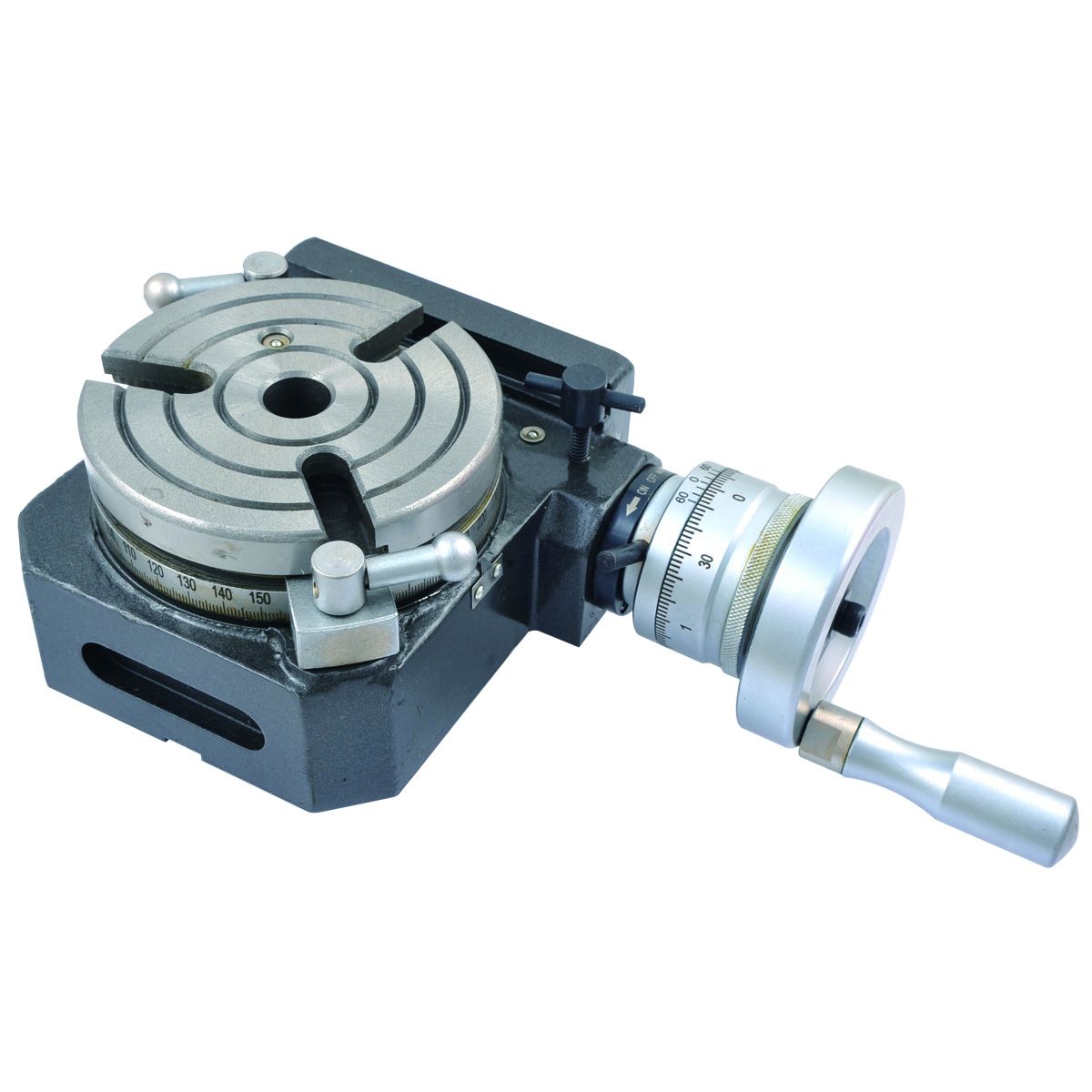

4"/110MM HORIZONTAL/VERTICAL ROTARY TABLE (3906-2304)

4"/110mm Horizontal/Vertical Rotary Table Table diameter is 110mm or 4-3/8". Horizontal overall height is 80mm or 3-1/8". Vertical overall height is 152mm. Overall length with handle is 280mm. Center height is 86mm. Gear ratio is 90:1. Center hole is 2MT. T-slot width is 11mm or 7/16". 3 t-slots. 10 second vernier reading. Graduated 360 degrees. One rotation of handle equals 4 degrees on the collar. Worm gear is easily disengaged for free rotation. Shipping Weight: 19.55 lbs
