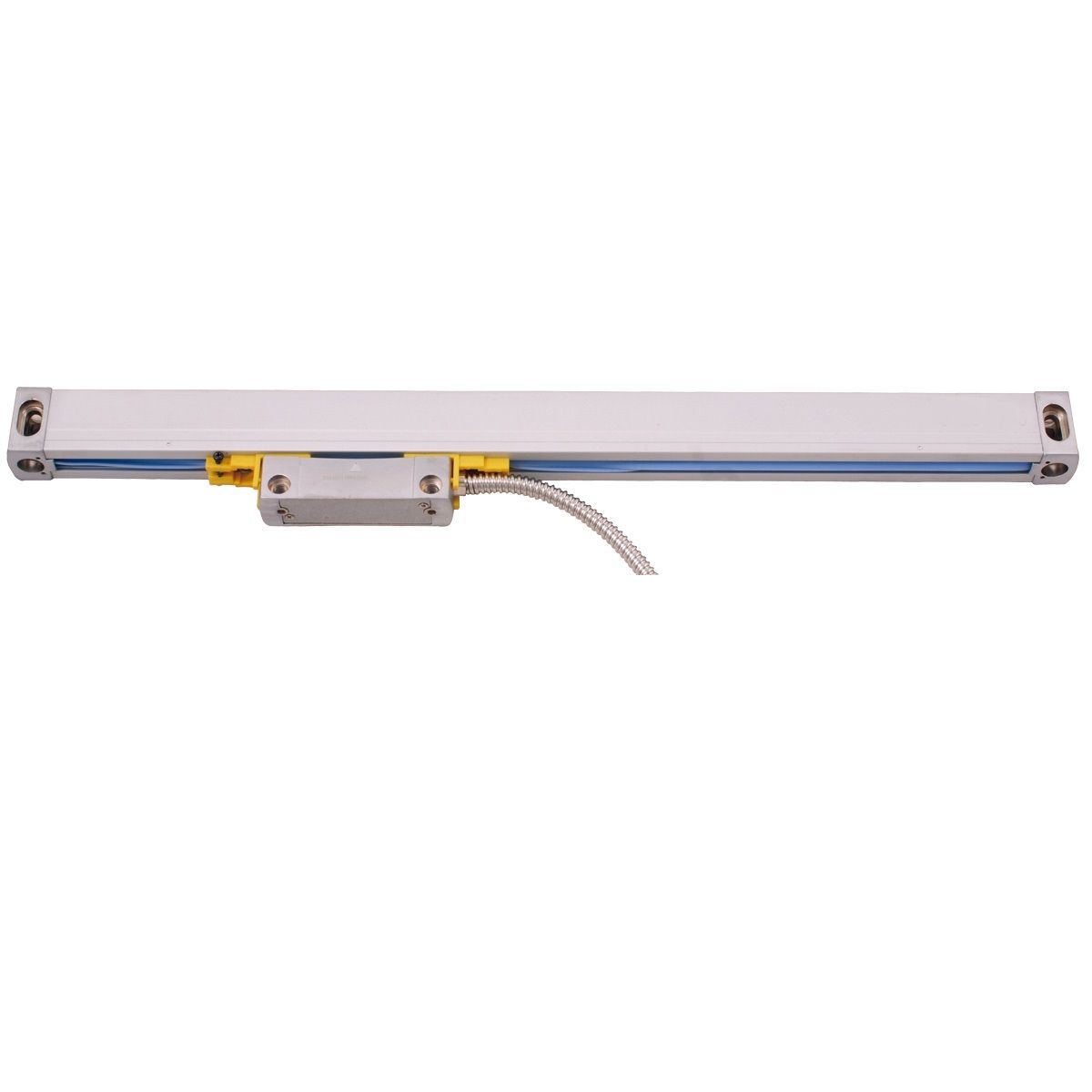

14" / 350MM OPTICAL LINEAR GLASS SCALE (3129-0264)
$198.13
Sale price
$198.13
Regular price
14" / 350mm Optical Linear Glass Scale (3129-0264) Grating pitch is 0.001"/0.02mm. Accuracy: ±.0005"/0.01mm (200C1000mm). 3 reference marks every 2"/50mm. Maximum traversing speed is 60m/minute. Output signal is TTL. Connector is 7 pin DIN (screw locking). Operating temperature is 0-45℃. .0002"/.005mm resolution. IP 53 Cable is 3 meters long. Output is TTL, HTL signal. Shipping Weight: 2.4 lbs
