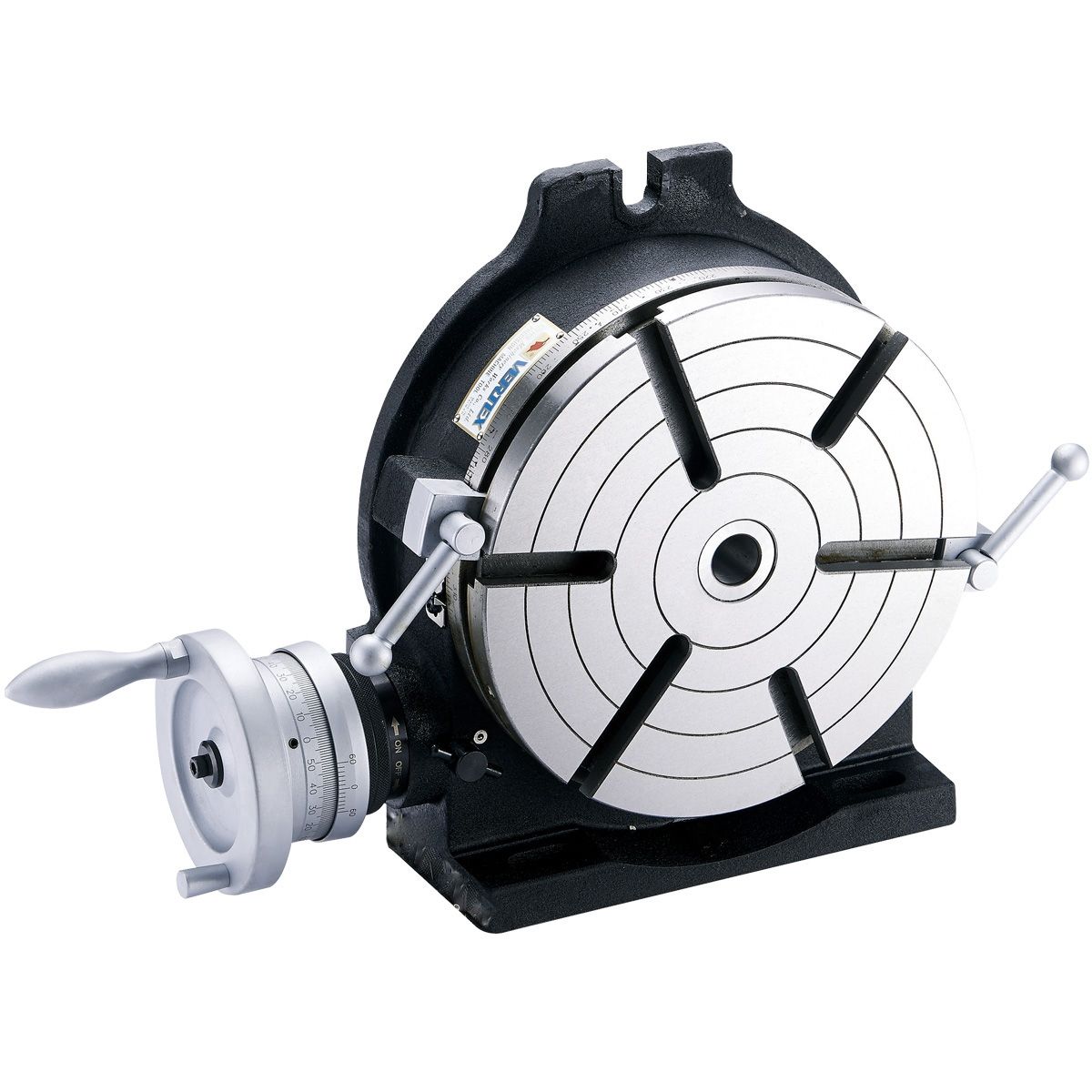

VERTEX 12" HORIZONTAL/VERTICAL ROTARY TABLE (3900-2332)

10" Horizontal/Vertical Rotary Table - Vertex # HV-12 Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations - from milling, drilling, boring and grinding. Use these tables with front mount chucks. Overall Horizontal Height: 5.3" Overall Vertical Height: 15.3" Center Hole: 4MT Vertical Center Height: 7.7" 6 T-Slots T-Slot Size: .63" Weight is 134 lbs. 10 second vernier reading. Gear ratio 90:1. One rotation of handle equals 4° on collar. Horizontal load capacity is 264 lbs. Vertical load capacity is 132 lbs. Shipping Weight: 137 lbs
