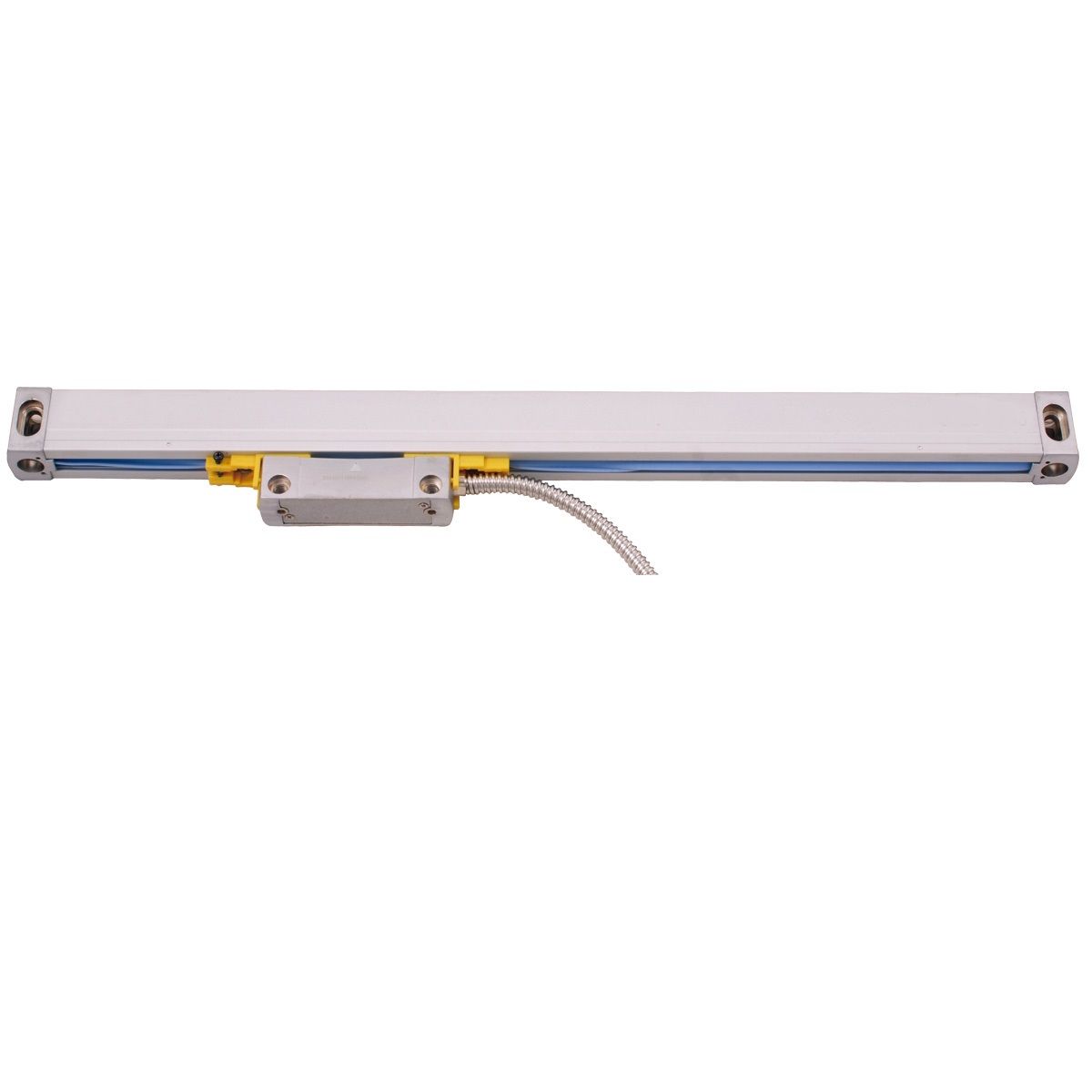

12" / 300MM OPTICAL LINEAR GLASS SCALE (3129-0262)

12 Inch / 300mm Optical Linear Glass Scale Grating pitch is 0.001"/0.02mm. Accuracy: ±.0005"/0.01mm (200C1000mm). 2 reference mark every 2"/50mm. Maximum traversing speed is 60m/minute. Output signal is TTL. Connector is 7 pin DIN (screw locking). Operating temperature is 0-45℃. .0002"/.005mm resolution. IP 53 L1 is 414. L2 is 431. Shipping Weight: 2.2 lbs
