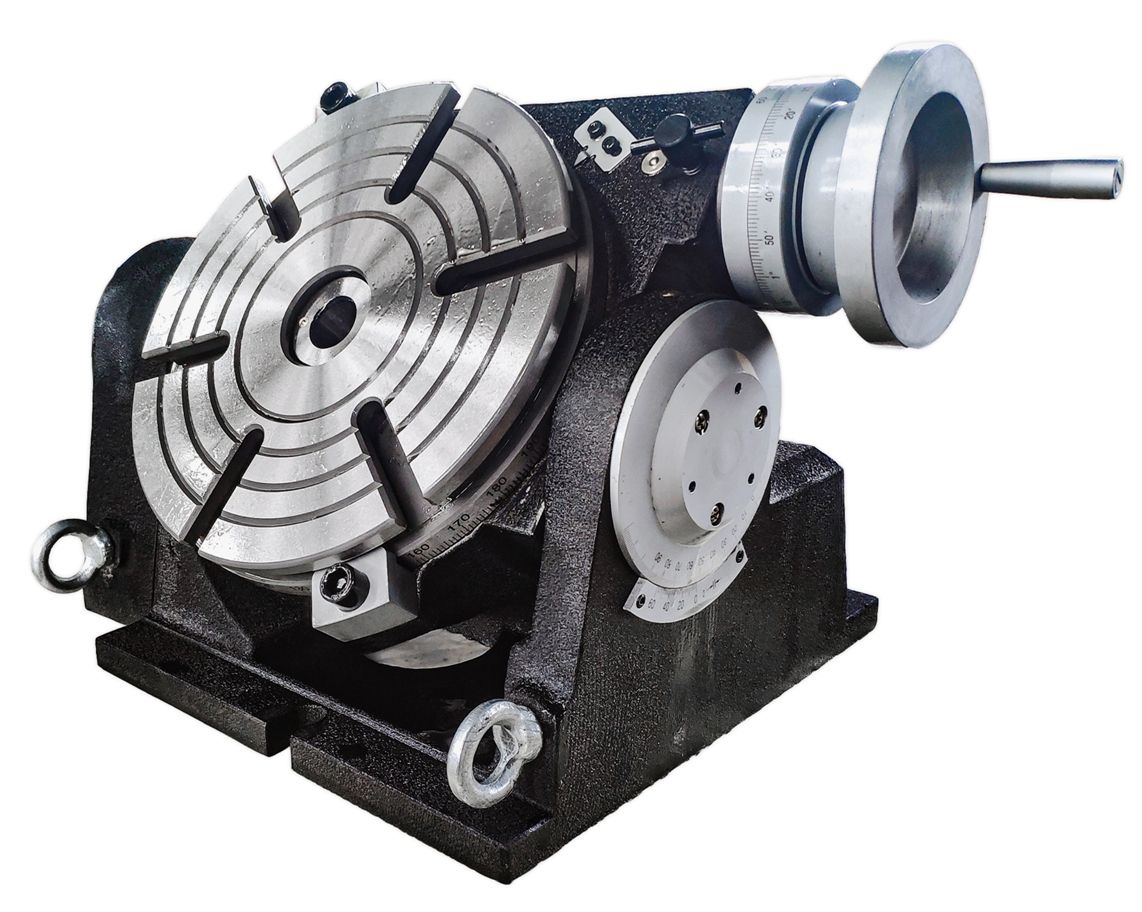

HHIP 10" TILTING ROTARY TABLE (3900-2315)

10" Tilting Rotary Table 10 second vernier reading. Gear ratio is 90:1. Dual positive action locks. Low profile. Gear drive is immersed in oil. Maximum cumulative spacing error is 45 seconds. Tilting height is 8". Range is 90 degrees. Center height is 5-1/2". Hole size is 3MT. T-slot size is 1/2". Base size is 10 X 12". Weight capacity is 200kg horizontally and 100kg vertically. Shipping Weight: 182 lbs
