1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)

1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)

$125.14
$125.14
Skip to product information
1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)
  • 1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)
  • 1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)
1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)

1 X 1-27/32 X 53/64 X 1-1/4 INDEXABLE T-SLOT CUTTER (2077-0506)

$125.14
$125.14

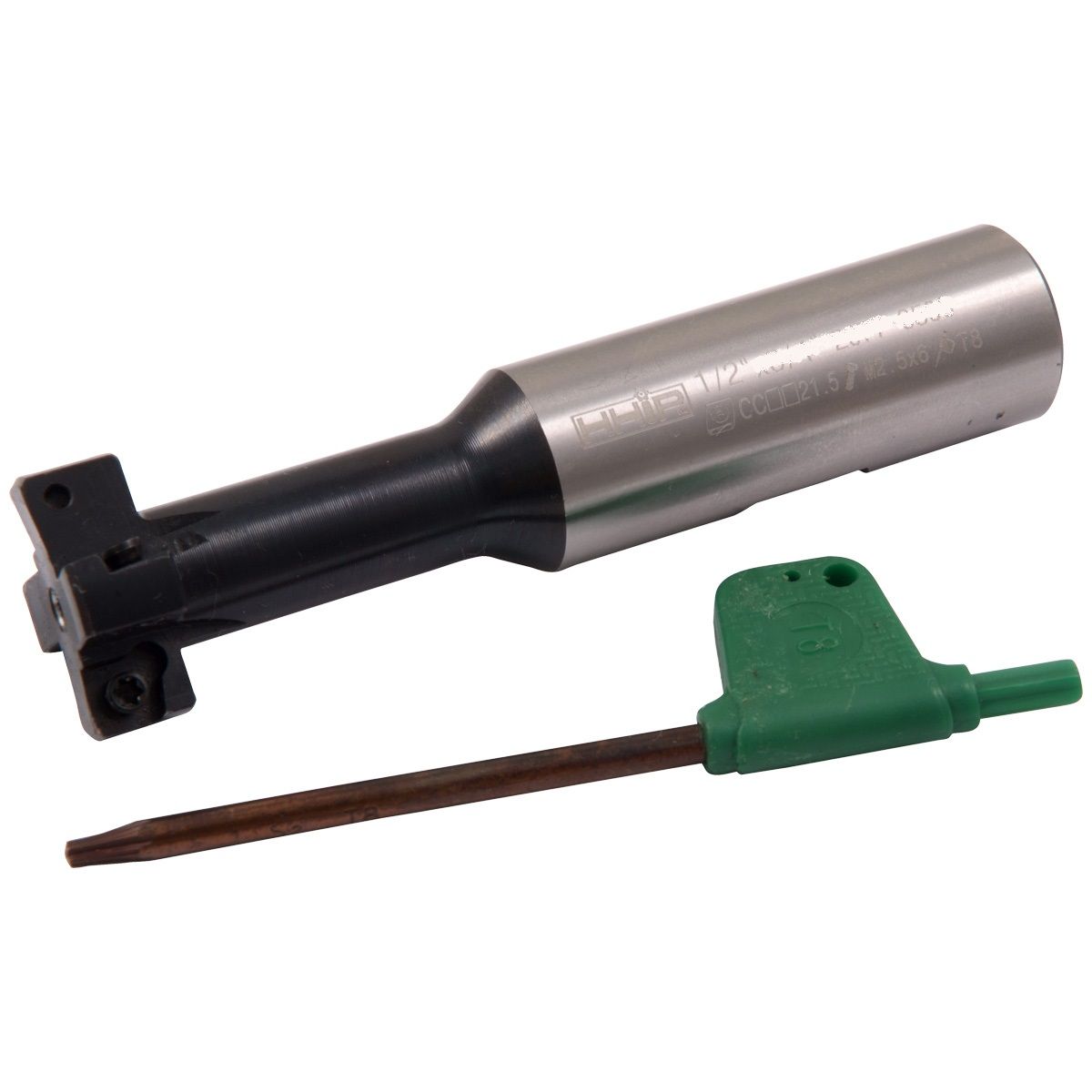

1 X 1-27/32 X 53/64 X 1-1/4 Indexable T-Slot Cutter (2077-0506) 7° relief. Setting rake is 90°. For milling, "T" sloting, bottom shouldering & side slotting. Bolt size is 1". Cutter diameter D is 1-27/32". Cutter width b is 53/64". Neck diameter d1 is 1-1/32". Shank diameter d is 1-1/4". Undercut length L1 is 2-9/16". Overall length is 4-7/8". Takes 4 CCMT 43 inserts. Replacement screw size is M5 X 10 #2100-0075. Shipping Weight: 1.5 lbs
